Sunnesolar plug & play extra panel protection kit

Characteristic
Reviews

-

All these elements are protected from the weather in an IP65 surface cabinet. And of course, the grounding. *The items served may vary, but we always guarantee that they will serve the purpose described.
-

It mainly protects people. It is an essential protection to prevent derivations in our alternating current circuit. This device acts when it detects a difference in readings caused by a shunt. This model has a current limit of 25A.
-

1 x DIFFERENTIAL ID 2P, 25A, 30mA, A STD.
-

It will interrupt the passage of current when the intensity exceeds the figure delimited by 6A in alternating current at 230V.
-

With this protection kit, your plug & play panel is the most complete on the market, because it includes the mandatory protections* required by the low voltage regulations.
-

*REBT and ITC regulations. UNE-EN 61643-11:2005; UNE-EN 61643-11/A11:2007.
-

Specifically, it includes the following security elements:
-

1X PROTECTION AGAINST TRANSIENT AND PERMANENT OVERVOLTAGES 15kA Class III (incorporated in the same microinverter)
-

It protects the installation in the event of overvoltages caused by short-term atmospheric elements and also overvoltages caused by the long-term electrical supply.
-

1 x MAGNETO THERMAL IM 2P, 6KA, 6A, C STD.
-

It acts as protection for the installation, incorporating double security. Provides thermal protection and magnetic protection. This model is 2-pole, prepared for a network frequency of 50 or 60 Hz with a durability of more than 10,000 cycles.

There are no reviews yet

Sunnesolar kit of additional protections for plug&play panel | Silver Sanz

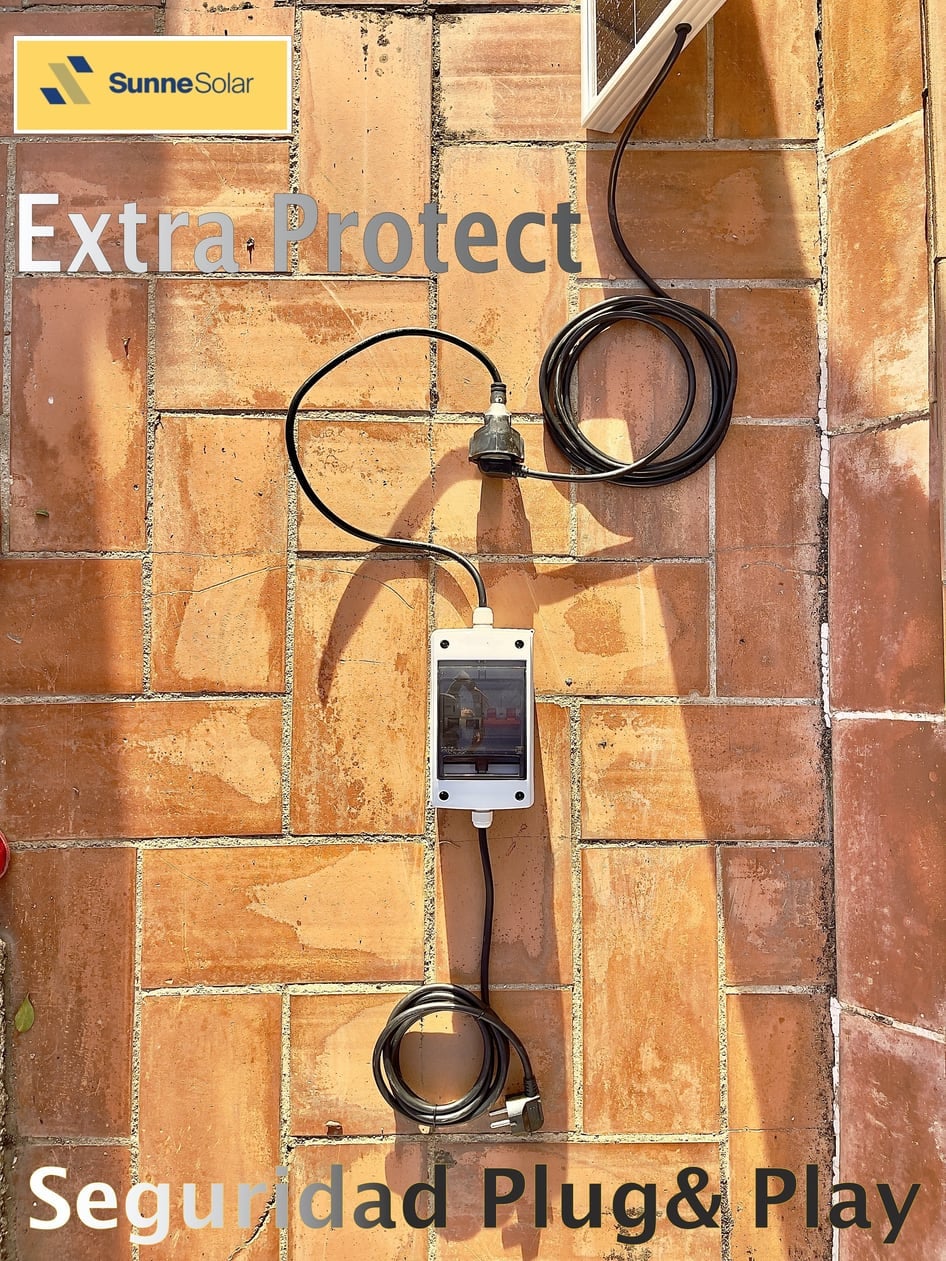

Now you have all the extra protection in a plug & play kit. Easily and immediately. With 5m of wiring in total you can use the free energy of the sun in many more ways. This kit is compatible with any plug&play panel.
